HIPPO UNIVERSAL PROGRAMMER.
Function:
JDM (= Ludipipo) programmer switchable EEPROM – PIC (for PIC and GW cards)
Phoenix – Smouse programmer 3,57MHz and 6MHz (all types of cards)
ATMEL (- harpune) programmer (for cards with processor ATMEL… Jupiter 1 or 2 , etc..)
Connection with PC by standart Com port.
Powered by 15 – 30 V DC
Parts (complete list of parts at the bottom of the page):
MAX 232
74HC00
7805
Tr. NPN 2 pcs
3 LED
Zen. diode 5V1 2 pcs. 13V 1 pc.
crystals 3,57+6+4MHz

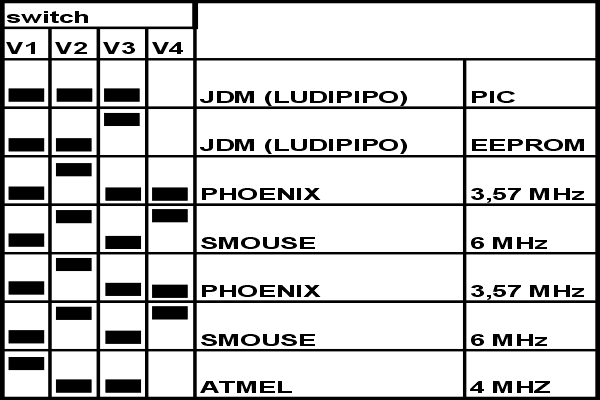

Switchers:
2 positions 4 poles 2 pcs. (JDM-ATMEL-MOUSE)
2 positions 2 poles 1 pc. (Eprom-PIC)
2 positions 1 pole 1 pc. (3,5MHz-6MHz)
2 positions 1 pole 1 pc. (mouse-phoenix)
Tested with programs:
ICprog 1.01, NTPicprog, Winphoenix, EEPromEdit 280, Ponyprog2000, Cardmaster2000, Jupiter1,7, Atmelcard_007

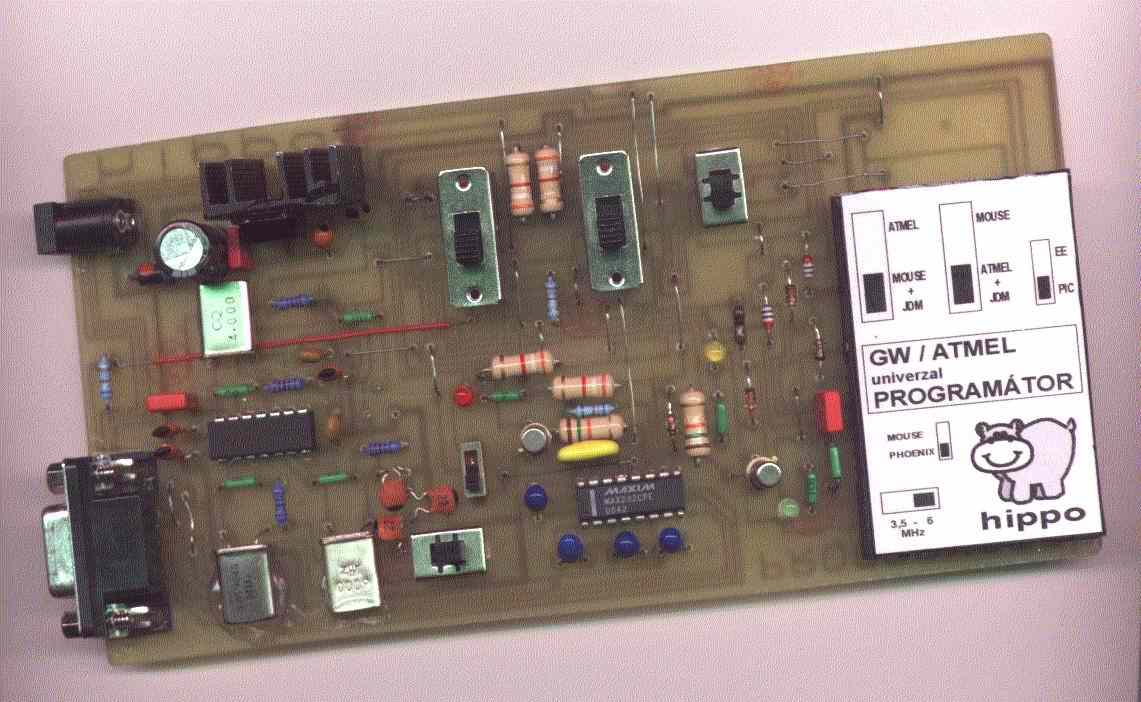

I builded whole programmer from components founded at home. You can found preferable ...

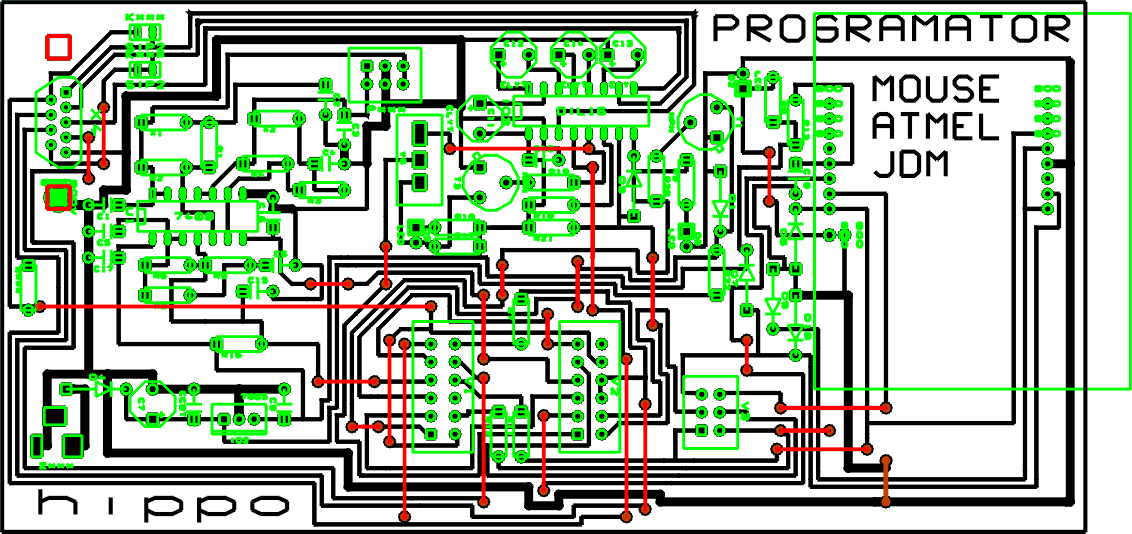

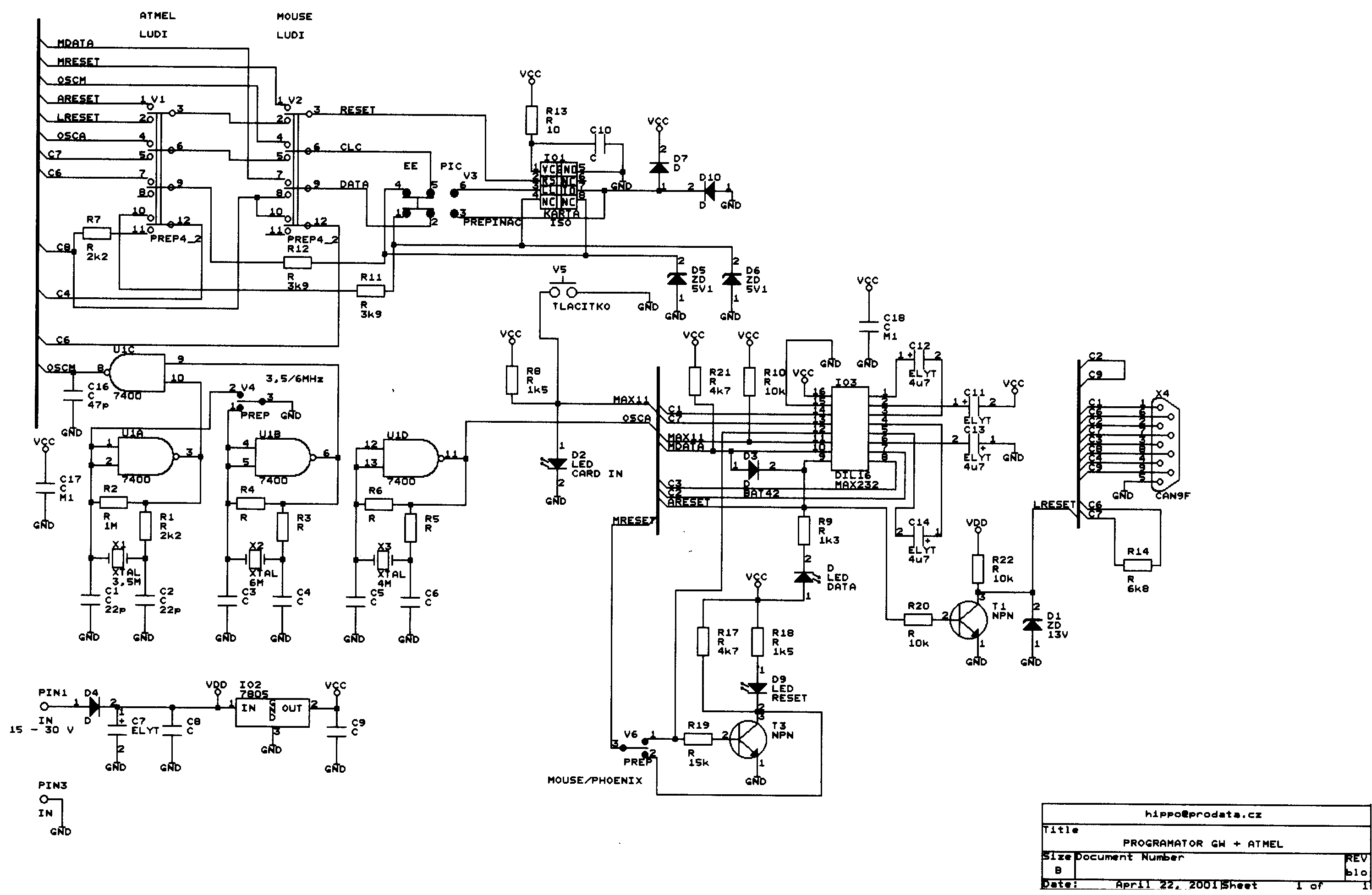

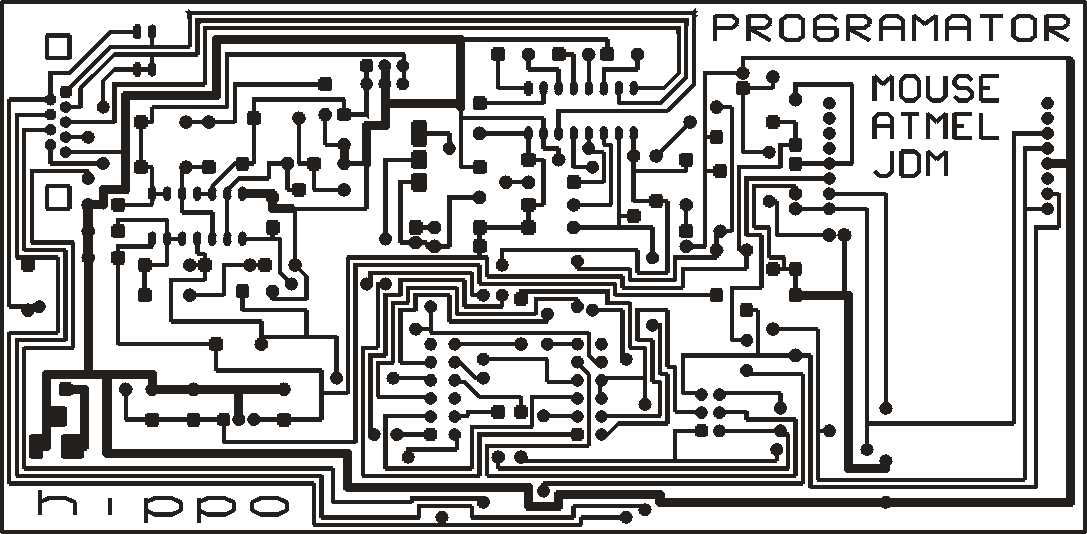

I have schematic diagram and board in old version OrCAD (version 3) and I don't know useful way in witch I can export it to picture. Because this, picture aren't as good as they can.
